Swming left right automatically mini loader Dingo Toro garden backhoe

FOB Reference Price:Get Latest Price
US $2,300-3,000 / Pieces | 2 Piece/Pieces (Min. Order)
Customization:
Over 1 Pieces - Customized logo , Customized packaging More
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Brand Name:
HENGTIANXURI
Place of Origin:
Shandong, China (Mainland)
Type:
Mini Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
1740x1150x1370MM
Rated Load:
400KGS
Certification:
CE ISO
Warranty:
12 Month
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Mini loader attachment post hole digger

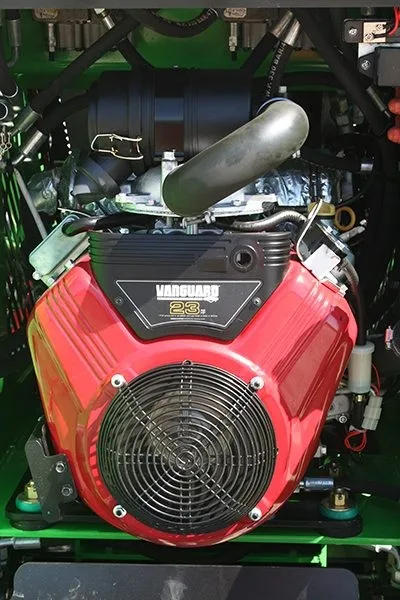

Engine:
Petrol BRIGGS &STRATTON
Voltage:
12V
Battery:
45AH
Bucket capacity:
0.15m3
Operating weight:
890kg
Rated Power:
23hp
Engine optional:
Kohler engine 23.5hp
SupplyAbility
SupplyAbility:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
In nude package , to be loaded into container .
Port
Any port of China
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(day) 15 To be negotiated
Product Description

Product Application

TY-323 SERIES is a kind of mini skid steer loader designed for productivity. Its ease of use, compact size, versatility and efficiency make it and ideal machine in any compact raodways or low space working.


TY-323 has both wheeled and tracked type, 4WD and skid-steering. Ride-on and folable platform adds convenience and comfor for operation and transportation,simply put it into a traier or in a delivery van to transport, no need special equipment.

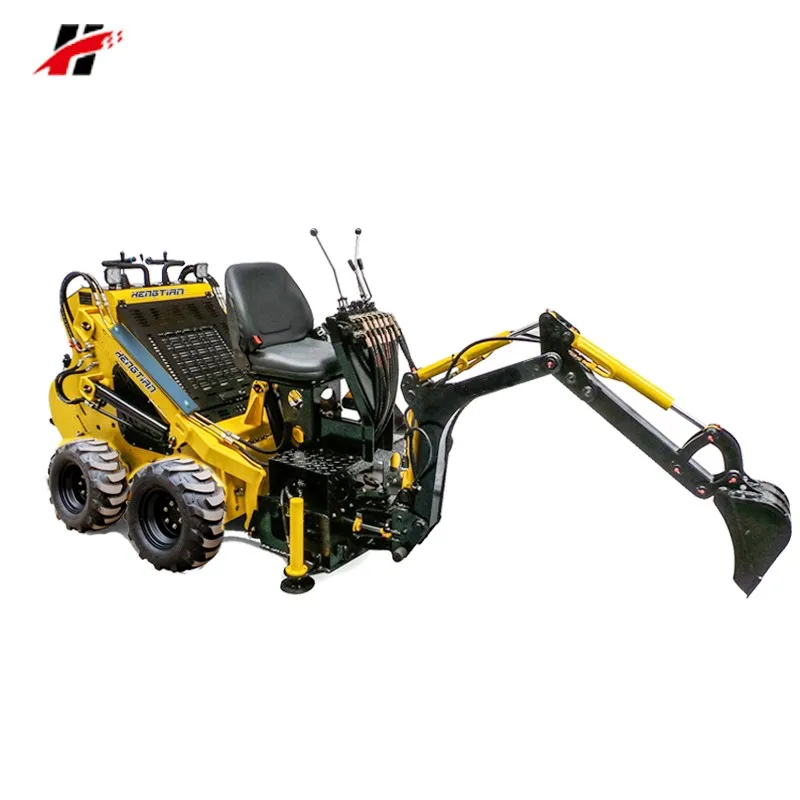

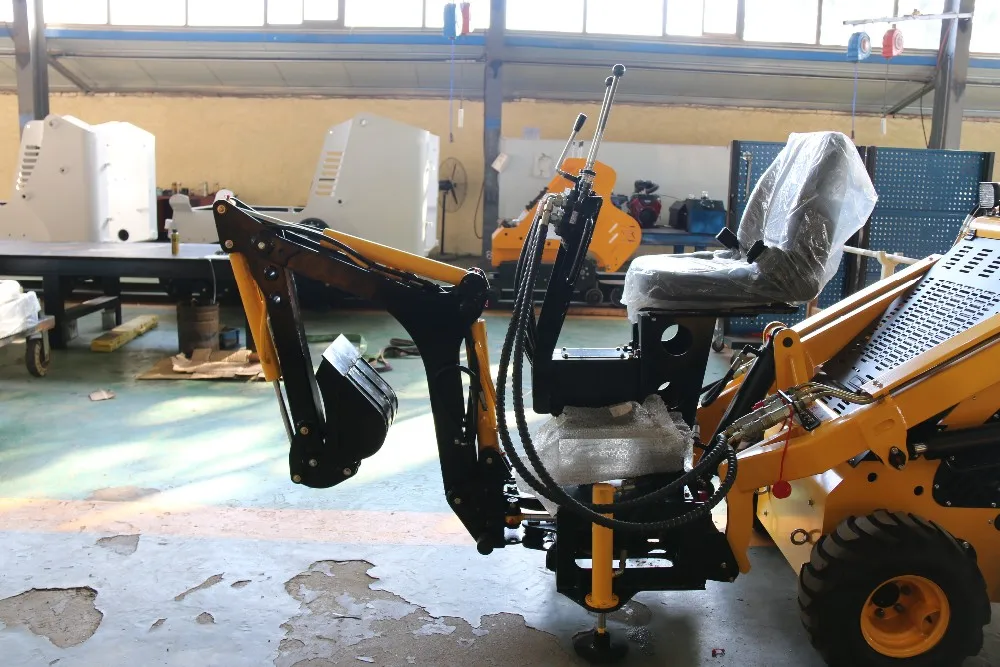

TY-323S or TY-323T work together with multi-functional attachments, here is mini loader with backhoe attachments, then it is multi-functional as a excavator.


                                                   SPECIFICATION FOR MINI WHEELED LAODER TY-323S
Item
Main description
Units - Metric
Units- US
A
Overall operating height
2452mm
96.5 in
B
Height to bucket hinge pin
1914mm
75.3 in
C
Height to top of cab
1370mm
54 in
D
Height to bottom of level bucket
1790mm
70.4 in
E
Overall length without bucket
1740mm
68.5 in
F
Overall length with bucket
2170mm
85.4 in
G
Dumping angle at maximum height (°)
33.7
33.7
H
Dumping height
1515mm
60 in
I
Dumping reach
545mm
21.5 in
J
Rollback of bucket on ground (°)
26
26
K
Rollback of bucket at full height (°)
114
114
L
Wheelbase
657mm
25.9 in
M
Ground clearance
140mm
5.5 in
N
Angle of departure (°)
23mm
23
O
Turning radius front without bucket
801mm
31.5 in
P
Front turning radius with bucket
1282mm
50.4 in
Q
Rear turning radius
1026mm
40.5 in
S
Tread width, centerline to centerline
960mm
37.8 in
T
Width between outside of two wheels
1150mm
45.3 in
U
Bucket width
1160mm
45.7 in

Main Features for mini skid steer loader TY-323S Dingo mini post hole digger model TY-323S

1 - TY-323S mini wheel loader is an exellent tool in tight sports like inside buildings or compact roadways wher bigger  machines can not go.

2 -The combination of powerful America engine and motor, Italy pumps and other quality parts helps you to lift more than TY-323S listed.

3 - Construction tires, turf tires , solid tires and narrow tires are available , depending on the jobsite.

4 -1370mm total height, working stand up on the back, it is have a widely wide view.Mini skid steer loader


MINI DIGGER SPECIFICATION.


Detailed Images

Machine Parts -Mini skid steer loader mini loader

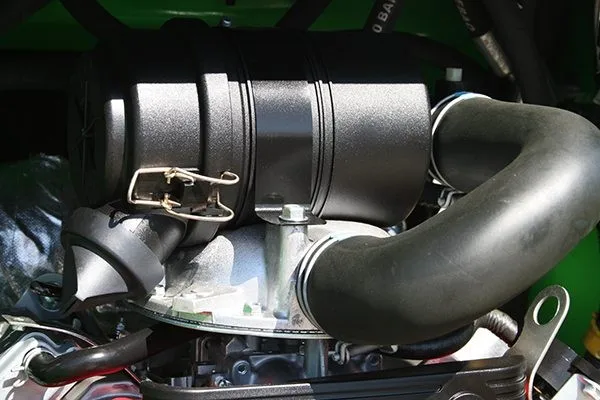

Name: If you like can optional outside air cleaner type

This will help you to have more room .

Main Features-Mini skid steer loader mini loader

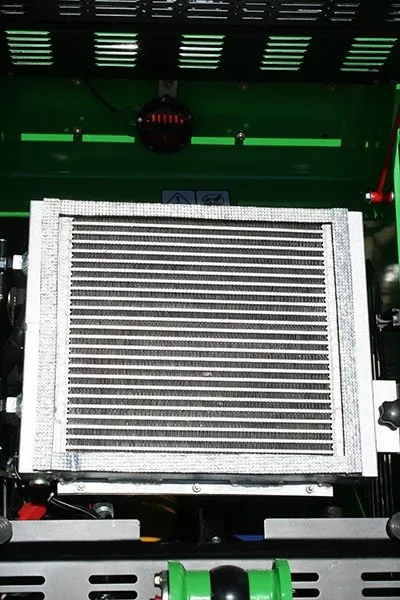

Name: Swing-open radiator

Easy for you to daily check and to have a look at your machines.

Machine Parts-Mini skid steer loader mini loader

Name: Stand up plate can be fold after you finished work , to save more room for your warehouse.

Main Features-Mini skid steer loader mini loader

Name: Quick connector can help you to change every attachments from auger to bucket , to trencher, to breaker, too grapple etc. in a little time , save labor , save tiime.more effiency.

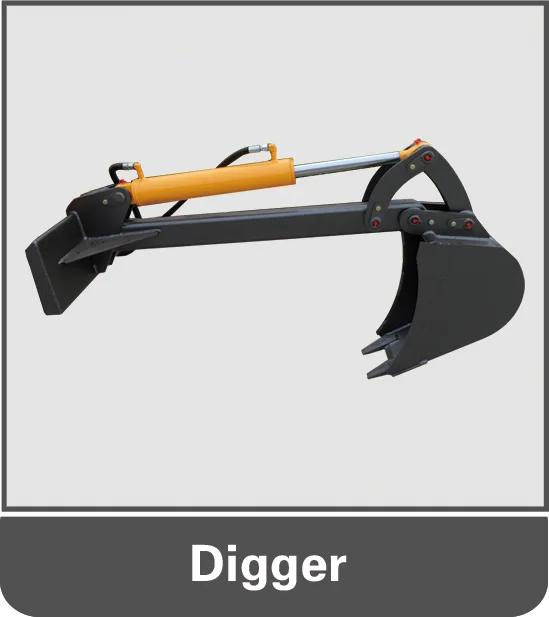

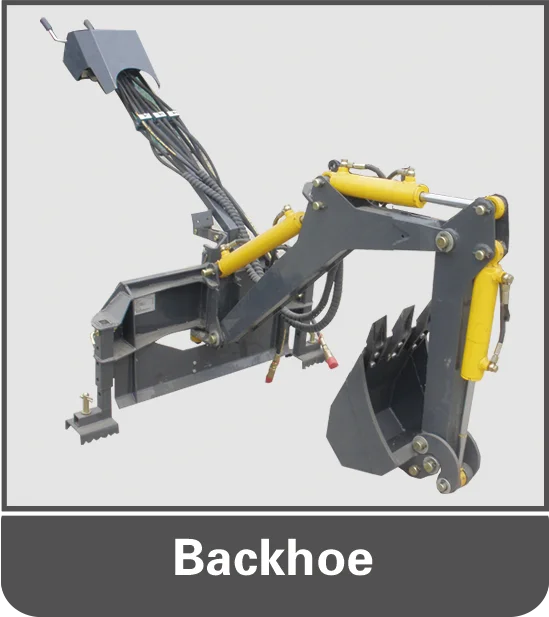

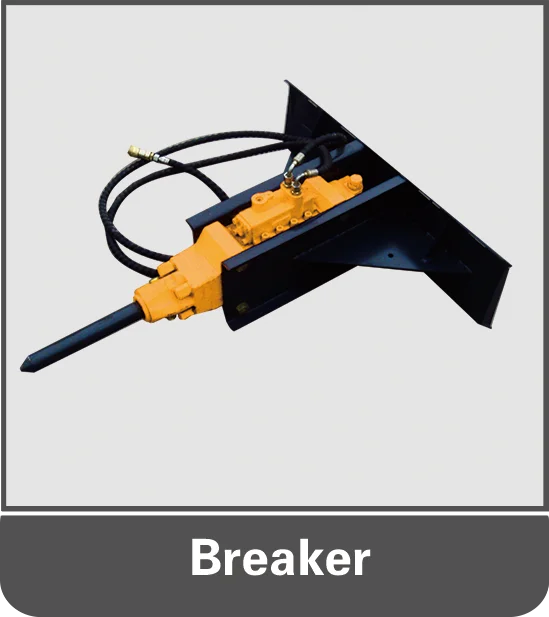

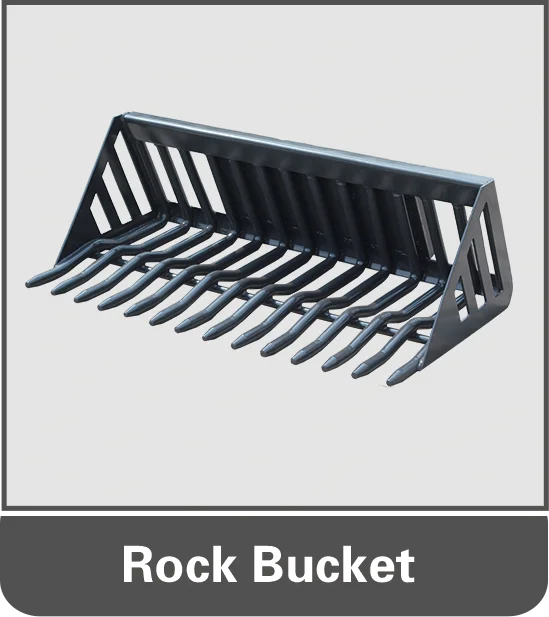

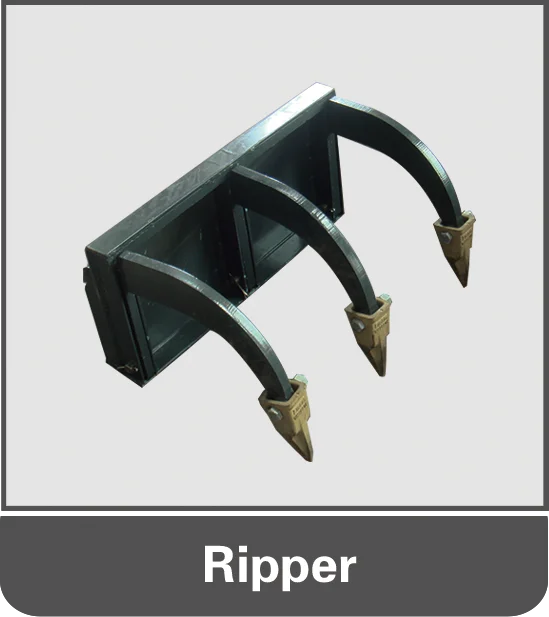

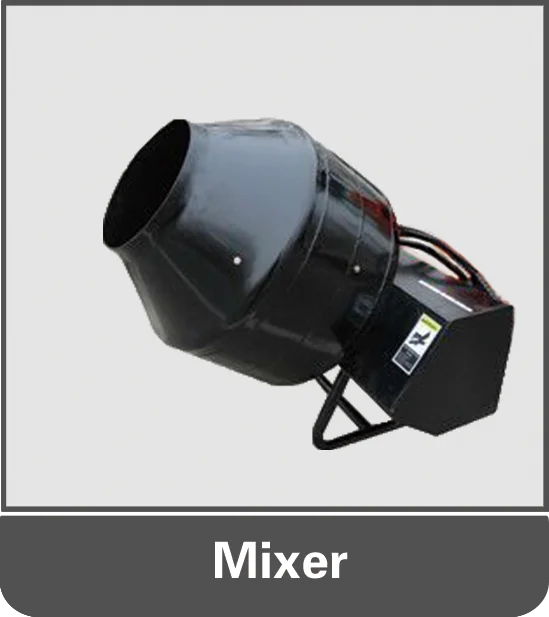

Attachments
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
900kgs



Packaging Details
The normal package when you order 1 or two units  is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging

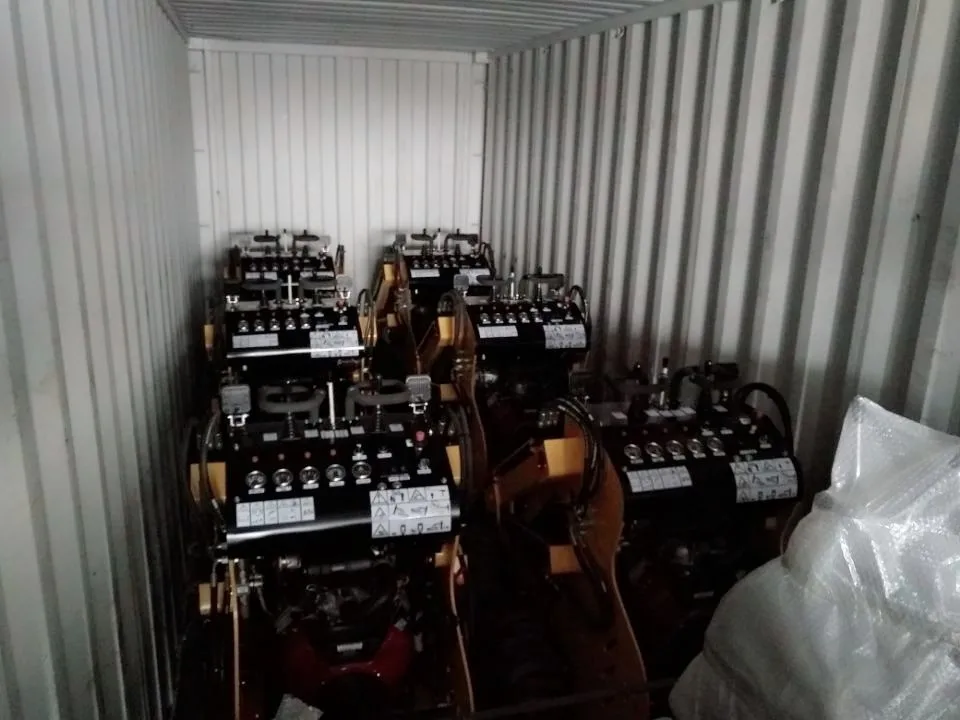

Drive into container directly

Max. loading
8 unit /20'ft
12 unit/ 40'ft


Mixing load
Usually, you should mix load together with various attachments, such as forks, trencher, leveller, drilling auger, mixer and/or any other attachments you ordered. so that the details package size and container loader quantities will be adjustable.
